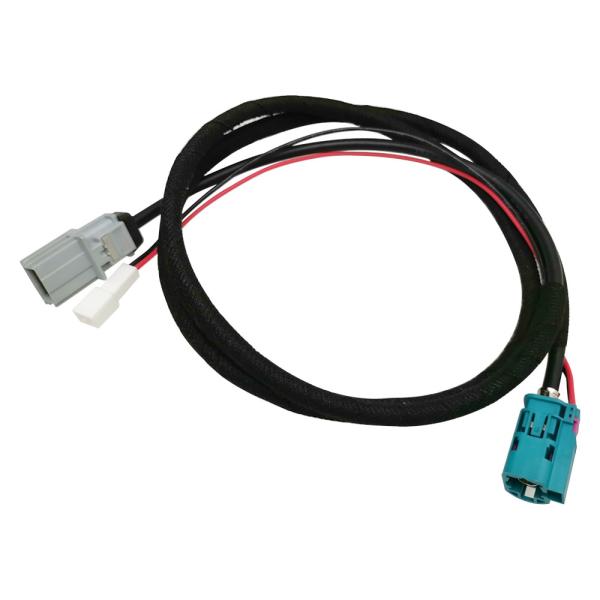

HSD 4+2 Z Code Connector Instrument LVDS Extension Harness For Buick
Product description:
HSD connectors are used for high speed data transfer and are generally used for high speed data transfer functions such as in-car infotainment systems and camera interfaces, single-wire, four-conductor. Connection solutions for automotive infotainment system modules, cameras, consumer ports and display units.
Main Feature:
1. Fully shielded connector system for different wire sizes and types
2. Compatible with LVDS, Ethernet and USB protocols
3. Super high interference resistant signal transmission
4. Multiple housings for space saving and fast insertion operation
5. Data rates up to 6 Gbps
6. Available in multiple versions, including a version with two power pins
7. Meets the demanding requirements of the automotive industry
8. MOQ:20 PCS
Applications:
1.High-speed data transmission
2.In-vehicle infotainment system
3.LVDS, IEEE 1394, Ethernet
4.Advanced Driver Assistance System (ADAS)
5. Telematics, multimedia, infotainment, GPS, navigation and camera
Offer Custom:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
Technical Specifications:
| Characteristic impedance | 100Ω |
| Frequency range | DC-2 GHz |
| Operating voltage | ≦100Volts rms |
| Insulation resistance | 1000MΩ Min |
| Volts resistance | 250Volts rms |
| Working current | 1.5A ~ 3A DCdepending on cable type |
| Contact resistance | Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max |
| Insertion force | 30N Max |
| Pull-out force | 5N Min |
| Snap Retention Force | 110 Min |
| Anti-misinsertion efficiency | 80 Min |
HSD Coding:
FAQ:
1.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.
2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.
3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.
